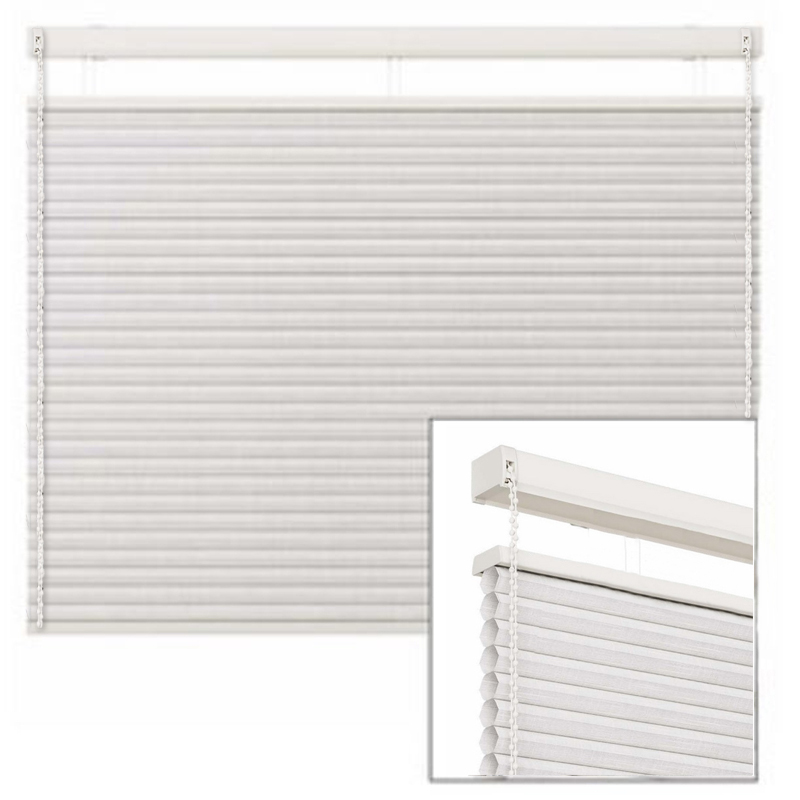

EcoSmart 2.0 Cord Loop Top-Down/Bottom-Up Light-Filtering Cellular Window Shades

Cord Loop Top-Down/Bottom-Up Light-Filtering Cellular Shade Details

These custom cellular shades combine soft, filtered daylight with flexible top-down/bottom-up positioning and a continuous cord loop system designed for smooth, precise operation. Cover the lower portion of the window for privacy, lower the shade from the top to bring in daylight, or adjust both rails to create the right balance for your room.

• Product type: Custom top-down/bottom-up light-filtering cellular/honeycomb shade
• Operation: Continuous cord loop with clutch-and-pulley system
• Top-down/bottom-up: Raise the shade from the bottom or lower it from the top
• Operating loops: One continuous loop on each side of the shade
• Light control: Translucent fabric diffuses direct sunlight into a softer glow
• Privacy: Blocks direct views through the fabric while allowing natural light into the room
• Width range: 29 to 92 inches
• Height range: 10 to 96 inches
• Best for: Living rooms, dining rooms, home offices, street-facing rooms, bathrooms, and larger windows
• Cell size: Modern 3/4-inch honeycomb pleats
• Fabric construction: Single-cell or cell-in-cell
• Insulation: Honeycomb air pockets help reduce heat transfer through the window
• Mounting options: Inside mount or outside mount

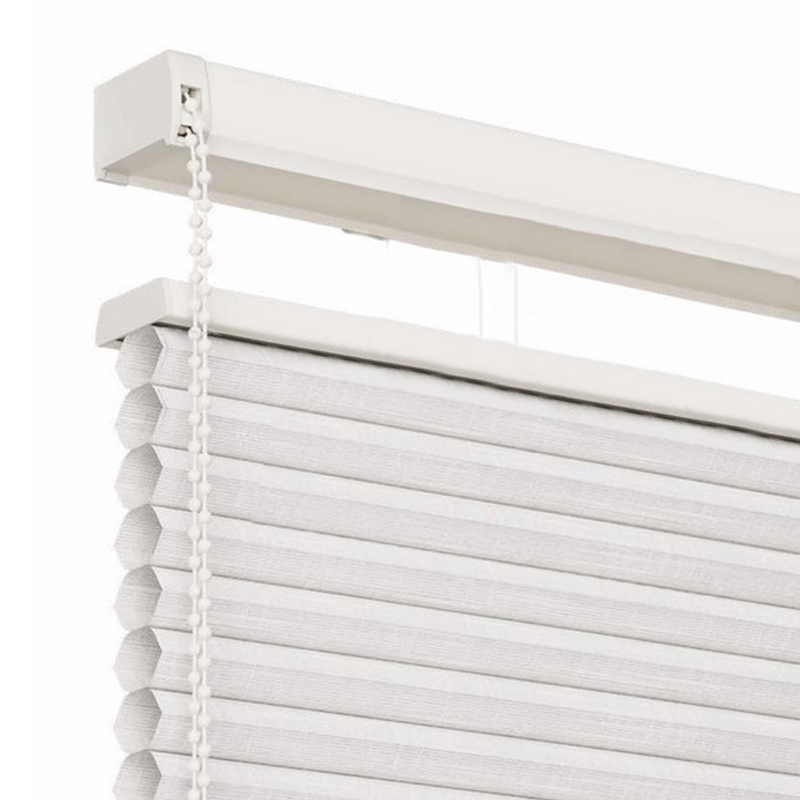

• Loop options: Fabric cord loop or beaded chain loop
• Side tracks: Optional for compatible inside-mount installations
• Fabric certification: OEKO-TEX Standard 100 certified
• Made in the USA: Custom made and hand-assembled in Williston, Vermont
• Warranty: Backed by the EcoSmart Shades Limited Lifetime Warranty

Why Choose Top-Down/Bottom-Up Light-Filtering Cellular Shades?

Top-down/bottom-up shades give you more control over privacy and daylight than a traditional bottom-up shade. Instead of simply deciding how much of the window to uncover, you can choose which part of the window remains open.

For example, keep the bottom half of a street-facing window covered to reduce views into your home while lowering the top rail to let daylight enter above eye level. In a home office or living room, you can adjust the shade throughout the day as sunlight, glare, and privacy needs change.

Browse all Top-Down/Bottom-Up Cellular Shades to compare other operating styles and fabric options.

Why Choose Continuous Cord Loop Operation?

Continuous cord loop shades use an internal clutch-and-pulley system to move the shade rather than requiring you to raise and lower each rail directly by hand.

This top-down/bottom-up configuration has a continuous loop on each side of the shade. One controls the bottom rail and the other controls the top, giving you precise control over both portions of the window.

The system is also well suited to larger shades. This configuration can accommodate windows up to 92 inches wide and 96 inches high.

See our Cellular Shade Styles guide to compare continuous cord loop operation with cordless, twin pull, and motorized cellular shades.

How Much Privacy Do Light-Filtering Cellular Shades Provide?

Light-filtering cellular fabric is translucent rather than transparent. It prevents a clear view through the shade while allowing a soft glow of daylight into the room.

In most situations, this provides excellent privacy. However, a person or object positioned directly between a strong interior light source and the shade may create a visible silhouette from outside, particularly with lighter fabric colors.

If complete opacity and greater room darkening are more important, consider Continuous Cord Loop Top-Down/Bottom-Up Blackout Cellular Window Shades.

Learn more about the differences between translucent and room-darkening materials in our Cellular Fabric guide.

Single-Cell or Cell-in-Cell Fabric?

Both options have modern 3/4-inch pleats and use honeycomb-shaped air pockets to improve insulation at the window.

Single-cell fabric contains one row of honeycomb air pockets. It is lighter in weight, somewhat less expensive, and still provides excellent insulation.

Cell-in-cell fabric contains a smaller cell inside the larger honeycomb cell. The additional trapped air provides somewhat greater insulating performance.

Both light-filtering options have a white exterior-facing surface to help reflect heat and provide a consistent appearance from outside your home.

If energy efficiency is an important part of your decision, our Cellular Shade Insulation and R-Value guide explains how cellular construction affects window performance.

Add Side Tracks for Greater Insulation

Compatible inside-mounted shades can be upgraded with EcoSmart Cellular Side Tracks.

The tracks cover the narrow gaps along the sides of the cellular shade, helping reduce airflow between the room and window. They can be especially worthwhile when energy efficiency is one of your primary reasons for choosing cellular shades.

Cord Loop or Cordless Top-Down/Bottom-Up?

Choose continuous cord loop operation when you want smooth manual control and need an operating system that works well with larger or heavier shades.

Choose Cordless Top-Down/Bottom-Up Light-Filtering Cellular Window Shades when you prefer to operate the top and bottom rails directly by hand without external operating loops and your window falls within the cordless size range.

If top-down operation isn’t necessary, our Continuous Cord Loop Light-Filtering Cellular Window Shades provide the same light-filtering fabric and cord-loop operation in a simpler bottom-up configuration.

You can also browse all Light-Filtering Cellular Shades to compare available operating systems.

Is This the Right Shade for Your Window?

Choose this configuration when you want:

• Top-down/bottom-up operation for greater control over privacy and daylight
• Light-filtering fabric that brightens the room without providing a clear view through the shade
• Continuous cord loop operation for smooth handling of larger shades
• Cellular insulation to help reduce heat transfer at the window
• Cell-in-cell fabric when additional insulating performance is a priority

For bedrooms or other rooms where greater darkness is the priority, choose the Continuous Cord Loop Top-Down/Bottom-Up Blackout Cellular Window Shade instead.

Measure Before Ordering

Every EcoSmart cellular shade is made to your dimensions, so accurate measurements are important. Review our Measuring for Cellular Shades guide before entering your width and height, particularly if you are deciding between an inside and outside mount.

Once your shade arrives, our Cellular Shade Installation guide provides instructions for installing and operating your new shade.

See the Fabric in Your Home First

Light-filtering fabric can look different depending on window orientation, interior lighting, and the color you select. Order Free Cellular Shade Fabric Samples to compare colors, textures, single-cell and cell-in-cell construction, and translucency at your own windows before ordering.
